GROHE Red Basic Duo Miješalica s bojlerom M veličine
Broj proizvoda
30320000
EAN
4005176385827
Boja
chrome
Rating
Opis proizvoda
- sastoji se od:
- GROHE Red Duo miješalica za sudoper
- instalacija na 1 otvor
- izljev u obliku slova C
- GROHE ChildLock sigurnosna ručica za kipuću vodu
- mechanical safeguard against accidental activation of boiling water
- GROHE StarLight chrome premaz
- GROHE SilkMove keramička kartuša 35 mm
- insulated tubular spout
- područje zakretanja 180°
- dvostrana armatura
- fleksibilne spojne cijevi
- priključak za GROHE Red bojler
- GROHE Red boiler M size
- rezervoar za kipuću i toplu vodu
- 3 liter 100° C boiling water
- 4 liter total capacity
- required inlet pressure: 1-7 bar
- with flexible connection hose and outlet for boiling water
- odobrenje CE
- power supply 230 V 50 Hz
- potrošnja el. energije 2100 W
- potrošnja el. energije u stand-by načinu 15 W
- energy efficiency class A
- GROHE Red filter set
- for protection of the boiler from limescale
- capacity 600 l at 20° dKH
- 5 phase filter
- flow rate measuring unit
Tehničke informacije

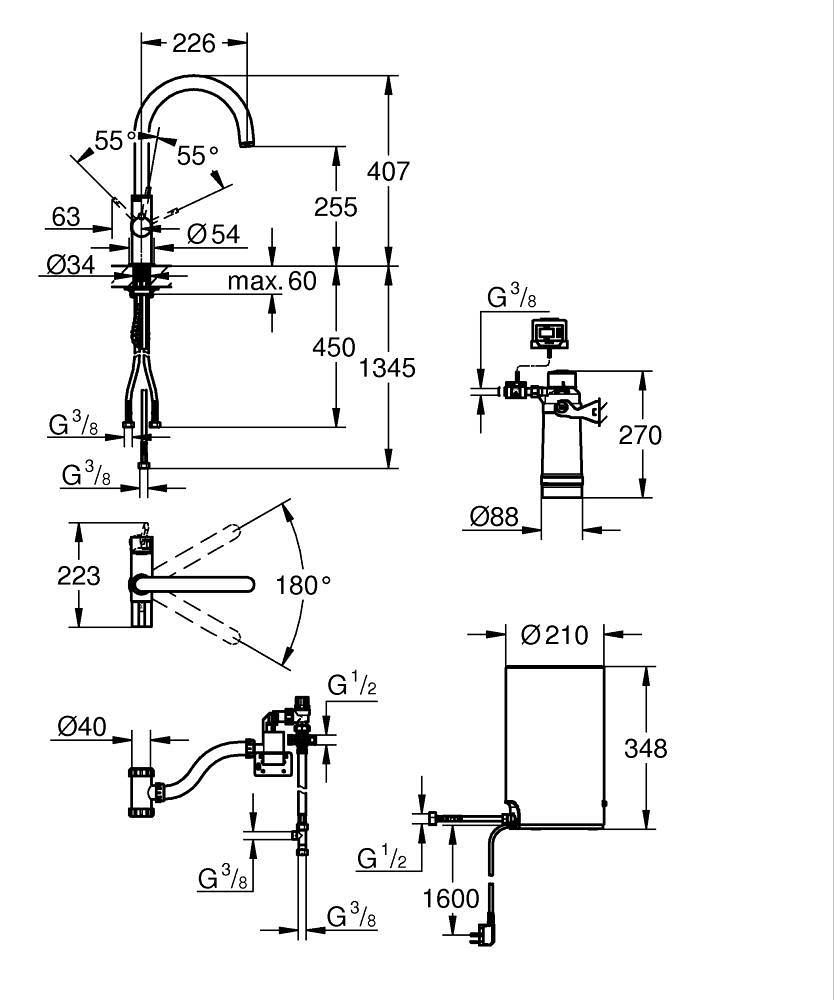

CAD Data
Rezervni dijelovi
| Broj pozicije | Opis proizvoda | Broj narudžbe |
|---|---|---|
| Galanterija po izboru | ||
| 1 | Screw coupling | 46460000 |
| 2 | Cap | 46116000 |
| 3 | Lever | 46653000 |
| 4 | Cartridge | 46374000 |
| 4.1 | Seal kit | 46347000 |
| 5 | HANDLE RED DUO | 46677000 |
| 6 | Headpart | 46678000 |
| 7 | Mousseur | 13263000 |
| 8 | Shank fastening assembly | 46249000 |
| 9 | Filter with filter head | 40438001 |
| 9.1 | Filter head | 64508001 |
| 9.2 | Filter S-Size | 40404001 |
| 10 | Boiler Size M | 40830001 |
| 11 | Safety group | 48371000 |
| 12 | Shorter mixed water lever | 40621000* |
| 13 | Socket spanner | 19332000* |
| 14 | Mounting wrench | 19017000* |
| 15 | Mixing valve | 40841001* |
| 16 | Filter L-Size | 40412001* |
| 17 | Filter M-Size | 40430001* |
| 18 | Activated carbon filter | 40547001* |
| 20 | Magnesium+ filter | 40691001* |
